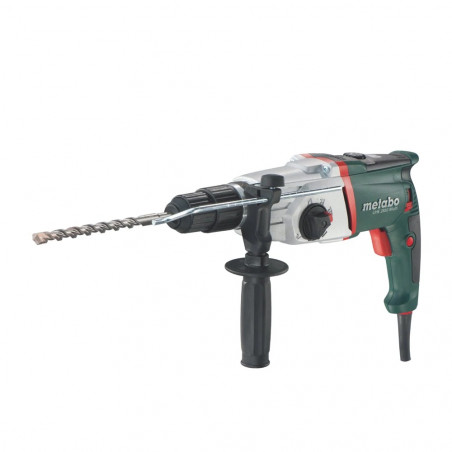

- Multi hammer with 4 functions: hammer drilling, drilling without impact in two speeds and chiselling
- Metabo Quick: quick change between SDS Plus hammer chuck and keyless chuck for drilling in wood and metal
- Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
- Thumbwheel for preselection of the speed and impact rate
- Two-speed gear unit: two drilling speeds for effective drilling in wood and metal
- Metabo Marathon-motor with dust protection for long service life
- High performance hammer action, precisely mounted in a housing made of aluminium alloy: long-lasting and robust
- Perfect ergonomics thanks to the centre of gravity being near the hand and optimised handle contour
- Bottom switch protected against damage and dust
- Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
- Restart protection: prevents unintentional start-up after power supply interruption
- Lockable switch for comfortable working in continuous operation
- Cable-protecting ball joint for optimal freedom of motion when working
- With metaBOX, the intelligent solution for transport and storage
Characteristics
Max. single blow energy (EPTA)
3.4 J
Maximum impact rate
4500 bpm
Drill-Ø concrete with hammer drills
28 mm
Drill-Ø masonry with core bits
68 mm
Drill-Ø soft wood
35 / 30 mm
No-load speed
0 - 900 / 0 - 2100 rpm
Revolutions at rated load
900 / 2100 rpm
Weight (without power cable)
3.3 kg
Vibration
Drilling in metal
4.3 m/s²
Uncertainty of measurement K
1.5 m/s²
Hammer drilling concrete
13.5 m/s²
Uncertainty of measurement K
1.5 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
90 dB(A)
Sound power level (LwA)
99 dB(A)
Uncertainty of measurement K
3 dB(A)
UHEV2860-2QUICK
