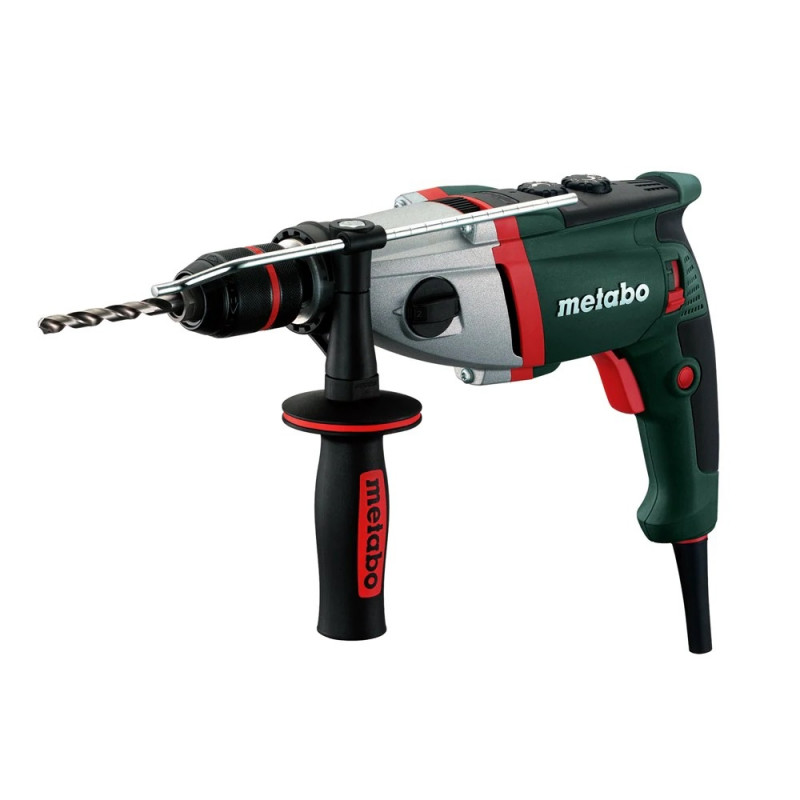

Metabo Impact Drill 1010 W Marathon Motor Safety Clutch

• Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
• Thumbwheel for Speed Preselection
• Robust die cast aluminium gear housing for optimum heat dissipation and long service life
• Rotating carbon brush bridge for maximum performance even in anti-clockwise operation, e.g. for the removal of stubborn screws
• Metabo Marathon-motor with dust protection for long service life
• Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the tool stop unexpectedly
• Forward and reverse rotation
• Spindle with hexagonal recess for screwdriver bits for working without chuck
• Restart protection: prevents unintentional start-up after power supply interruption
• Cable-protecting ball joint for optimal freedom of motion when working

Characteristics

Rated input power
1010 W

Output power
540 W

Maximum torque
40 / 14 Nm // 354 / 124 in-lbs

Drill-Ø masonry
22 mm / 7/8 "

Drill-Ø concrete
20 mm / 25/32 "

Drill Ø steel
16 / 10 mm // 5/8 / 3/8 "

Drill-Ø soft wood
40 / 25 mm // 1 9/16 / 1 "

No-load speed
0 - 1000 / 0 - 2800 rpm

Revolutions at rated load
1000 / 2800 rpm

Maximum impact rate
53200 bpm

Gears
2

Chuck capacity
1.5 - 13 mm // 1/16 - 1/2 "

Collar diameter
43 mm / 1 11/16 "

Drill spindle with hexagonal recess
6.35 mm / 1/4 "

Drill spindle thread
1/2 " - 20 UNF

Chuck clamping type
Geared Chucks

Weight (without power cable)
2.7 kg / 6 lbs

Cable length
4 m / 13 ft

Vibration

Drilling in metal
4.2 m/s²

Uncertainty of measurement K
1.5 m/s²

Impact drilling concrete
17 m/s²

Uncertainty of measurement K
1.5 m/s²

Noise emission

Sound pressure level
103 dB(A)

Sound power level (LwA)
114 dB(A)

Uncertainty of measurement K
3 dB(A)
